Our Machinery Capacity
Overview
At Sapphire Mechanical Equipment Trading LLC, we utilize advanced CNC machines for precision manufacturing of hydraulic and pneumatic seals, mechanical components, and custom machined parts. Below is a detailed list of our machinery, their capabilities, and applications.

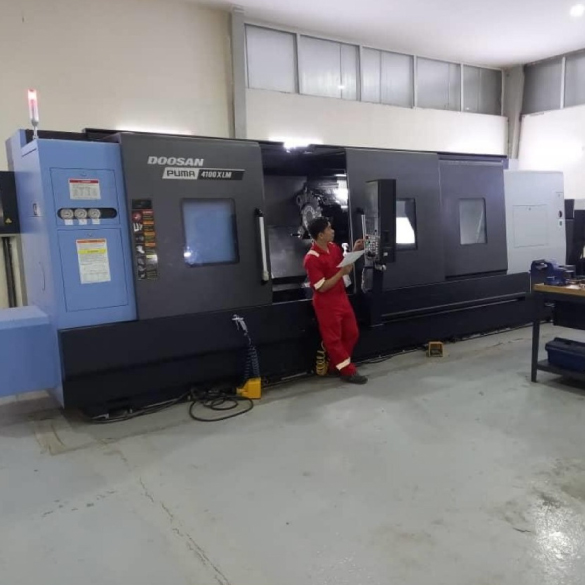

CNC LATHE : 3 AXIS
| Specification | Details |
|---|---|
| Maximum Turning Diameter | 550 mm |
| Maximum Turning Length | 2,100 mm |
| Chuck Size | 18 inches |
| Spindle Speed | 2,000 RPM |
| Tool Capacity | 12 stations (turret) |
| Features | Live tooling for milling and drilling operations |
| Material Compatibility | Steel, stainless steel, aluminum, brass, titanium |
| Industry Applications | Oil & gas, aerospace, automotive, industrial equipment |

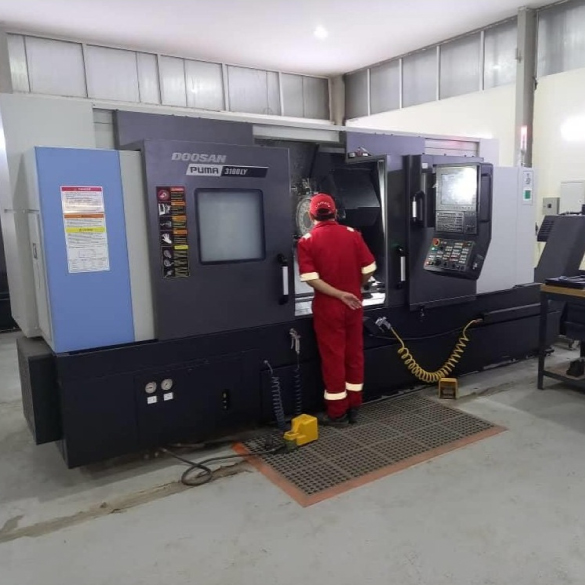

CNC LATHE : 4 AXIS
| Specification | Details |
|---|---|
| Maximum Turning Diameter | 420 mm |
| Maximum Turning Length | 1,250 mm |
| Chuck Size | 12 inches |
| Spindle Speed | 3,000 RPM |
| Tool Capacity | 12 stations with Y-axis movement |
| Features | Y-axis capability for off-center milling and drilling |
| Material Compatibility | Hardened steel, stainless steel, aluminum, copper alloys |
| Industry Applications | Energy, defense, manufacturing, hydraulic components |

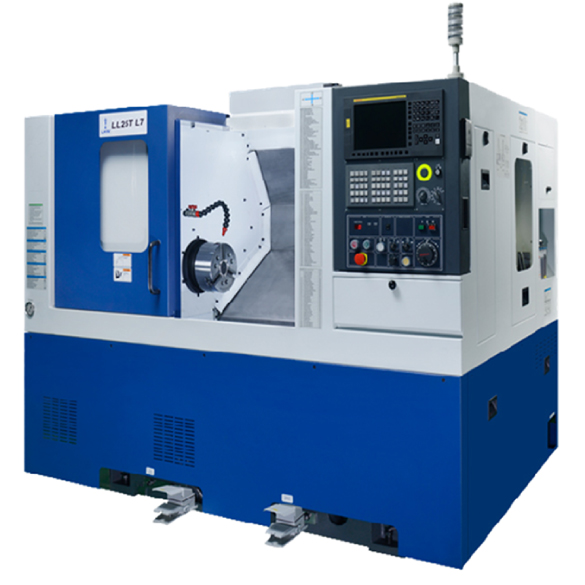

CNC LATHE : 2 AXIS
| Specification | Details |
|---|---|
| Maximum Turning Diameter | 350 mm |
| Maximum Turning Length | 550 mm |
| Chuck Size | 10 inches |
| Spindle Speed | 4,000 RPM |
| Tool Capacity | 8 stations (turret) |
| Features | High-speed precision turning |
| Material Compatibility | Mild steel, plastic, composite materials, bronze |
| Industry Applications | General machining, precision parts, electronics |

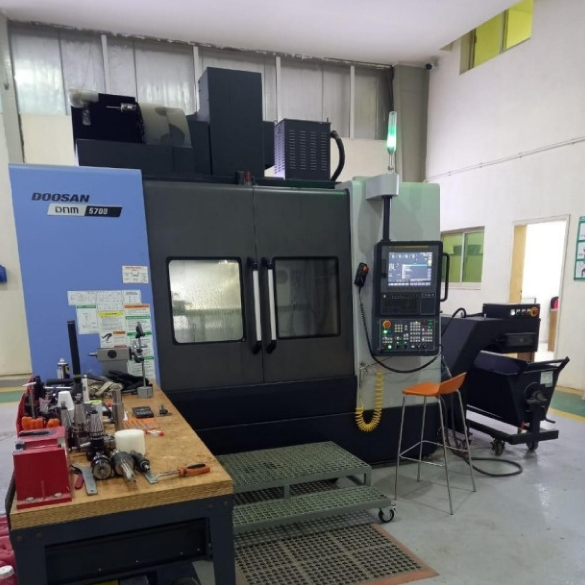

CNC MILLING : 4 AXIS
| Specification | Details |
|---|---|
| X-Axis Travel | 1,050 mm |
| Y-Axis Travel | 570 mm |
| Z-Axis Travel | 510 mm |
| Spindle Speed | 12,000 RPM |
| Table Size | 1,200 mm × 570 mm |
| Tool Capacity | 30 stations (automatic tool changer) |
| Features | 4th axis rotary table for multi-face machining |
| Material Compatibility | Aluminum, brass, stainless steel, plastic, titanium |
| Industry Applications | Mold making, aerospace, high-precision machining |

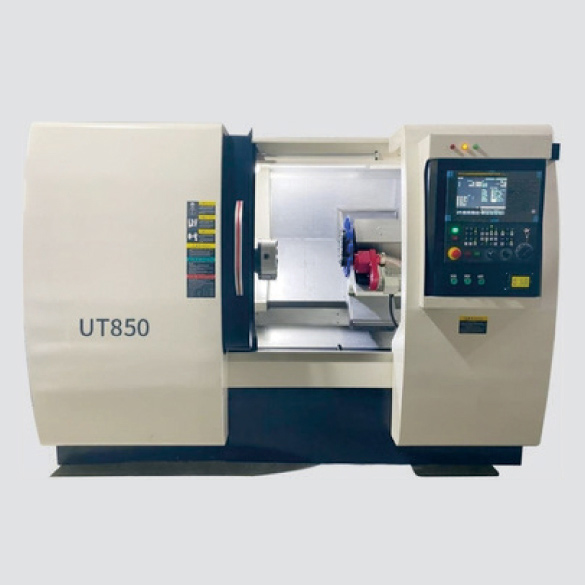

CNC SEAL MACHINE: SEALING RING LATHE MACHINE
| Specification | Details |
|---|---|
| Maximum Turning Diameter on Bed | 520 mm |
| Maximum Turning Diameter | 420 mm |
| Maximum Turning Length | 350 mm |
| Spindle Speed | 4,000 RPM |
| Spindle Power | 7.5 kW |
| Tool Capacity | 12 station VDI turret |
| Chuck Size | 10 inches (manual) |
| Features |
|
| Material Compatibility | PTFE, rubber, nylon, UHMWPE, plastics |
| Industry Applications | Hydraulic and pneumatic seals, oil & gas sealing solutions |

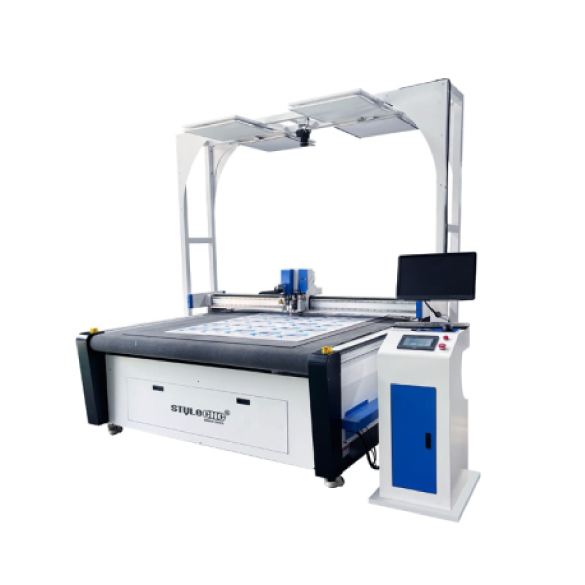

CNC KNIFE CUTTING MACHINE
| Specification | Details |
|---|---|
| Working Area | 1600 × 2500 mm |
| Cutting Thickness | 1–50 mm (varies by material) |
| Cutting Speed | Up to 1200 mm/s |
| Movement Speed | 2000 mm/s |
| Material Fixing Method | High-power vacuum absorption with intellectual partition |
| Drive System | Japan Panasonic AC servo motor with linear guide rail |
| Control System | Kinco CNC system with CAD compatibility |
| Features |
|
| Material Compatibility | Cork, rubber, graphite, non-asbestos gaskets, leather, plastic, sponge, foam |
| Industry Applications | Automotive gaskets, industrial sealing, packaging, textile, insulation |
OTHER WORKSHOP FACILITIES
| Specification | Details |
|---|---|
| Working Area | 1600 × 2500 mm |
| CNC Saw Machine | For precise cutting of raw materials |
| API Threading Gauge | Ensures high-accuracy thread cutting |
| CAD / CAM Software | Advanced programming for complex machining |
| Precision Measuring Tools | For quality assurance and accuracy |
